WITA® Servomotors SM W05/10

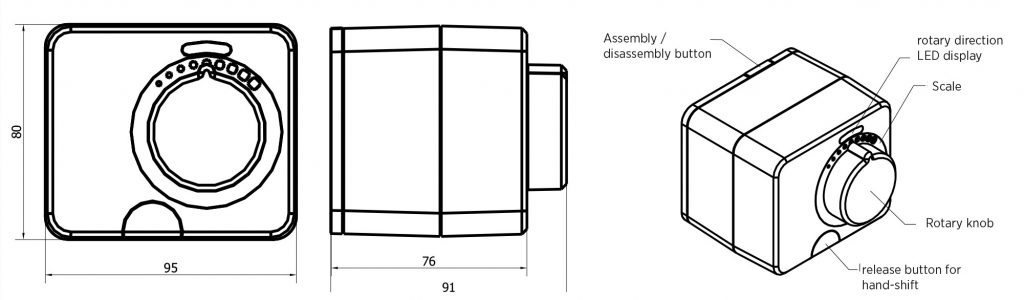

The WITA^® servomotors series “W05” and “W10” are used to drive rotary mixers, valves and ball valves. Their modern construction and the top quality of the used materials ensure reliable and silent operation. Assembly and disassembly can be done without use of tools by pressing the mounting button. By pressing the release button for hand-shift each position can be manaully adjusted. During the operation the direction will be signalized by a LED-display.

Categories: Products, Drive technology, Servomotors,

Torque 5 Nm, 10 Nm or 15 Nm
rotation angle 90 °
Rotational speed 2 min / 90 <° (option 15 sec, 30 sec, 1 min, 4 min and 8 min / 90 <°)
Additional switch possible as an option
2-point, 3-point or proportional mode
suitable for the construction of rotary mixers
Display of the current valve position
Direction of rotation indication by LEDs
no damage to the servomotor when the valve is blocked
Possibility of manual adjustment of the mixer in a possible position by permanent coupling
silent and reliable operation
Maintenance free
easy and quick installation without tools
