WITA® Delta TOP 40

The WITA^® high-efficiency circulating pumps are characterized by a high quality “Made in Germany”. By using high-grade materials, our products are designed for a long service life. Because of our own production in the Bad Oeynhausen (Germany), we can ensure efficient structures, our quality standards, the requirements of craftsmanship and fair prices.

As a material, WITA^® processes cataphoresis-coated armature castings and chromium-nickel steel. These proven materials guarantee high resistance and a versatile range of applications. All circulating pumps are supplied with heat insulation shells, seals, coupling plugs or permanently installed cables.

In an average household, 10 to 15% of the electricity consumption is caused by conventional standard pumps. Through the use of the WITA^® high efficiency pumps the energy consumption can be compared to a conventional circulation pump. Approximately 80%.
The hydraulic power could be almost kept the same compared to standard pumps.

Special features / Product advantages

– Highest efficiency through EC permanent magnet motor technology
– From 3 Watt min. input
– One-touch menu navigation
– Pre-selectable control modes constant speed / variable differential pressure
– Anti-block function
– Integrated motor protection
– High start-up safety
– Simple pipe mounting through a practical key attachment

Categories: Products, Pump technology, High efficiency pumps,

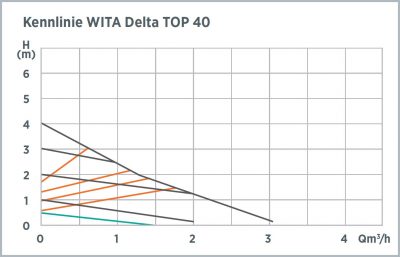

Nine different performancecurves can be selected by one-touch operation. In addition to the four characteristics which operate according to the proportional pressure method, four further can be selected with a constant characteristic curve. Additional, the pump has a minimum operating Level.
